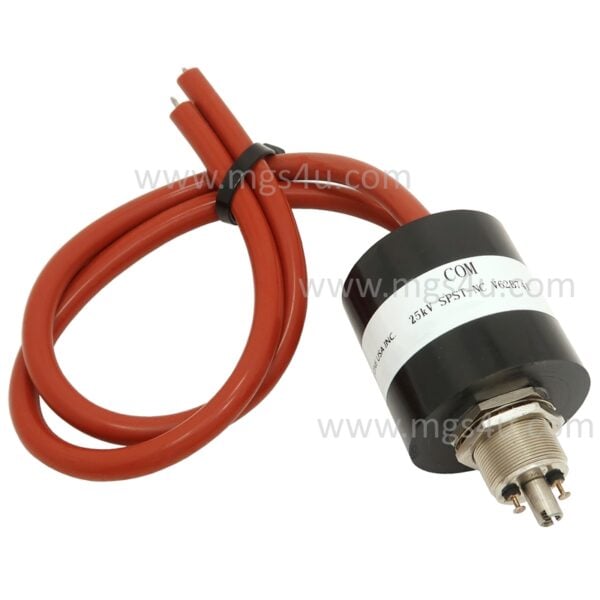

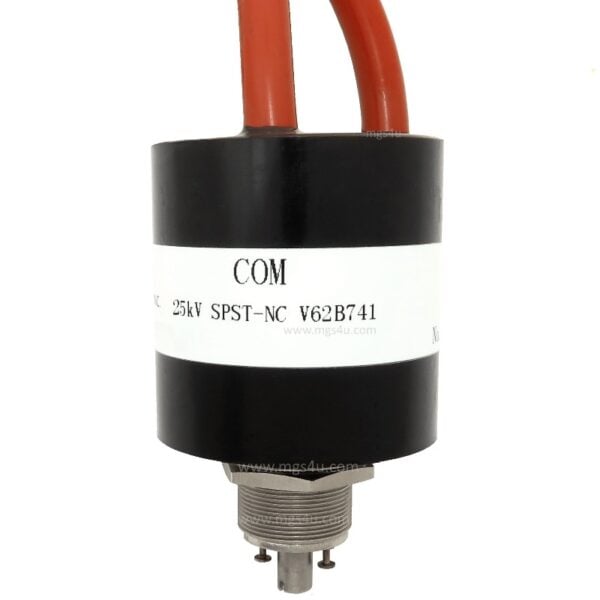

25 kV, 30 kV Peak, SPST-NC, 18 Amps, Greenstone V62B741 – NEW Vacuum Relay

Greenstone V62B741 ceramic vacuum relay, SPST-NC Test Voltage 25 kV Peak Voltage 30 kV Current Carry Amps (RMS) 18 Amps Contact Close Speed 15 MS (Milliseconds) Contact Release Speed 15 MS (Milliseconds) Rated Life Operations 1,000,000 Important Dimensions Max Length 2 in / 50.80 mm Max Width 2 in / 50.80 mm Max Height 3.15 in / 80 mm Flying Lead Length 12 in / 305 mm Weight 12 oz / 336 grams Mounting Threaded base with two nuts for mounting through hole in chassis. Condition Brand New, unused. Guaranteed good. Spec Sheet (Other variations of this capacitor are sometimes available, inquire) Greenstone Gigavac GL-Vac Kilovac V62B841 G62B841 GL62B841 K62B841 V62B741 G62B741 GL62B741 K62B741 V62B941 G62B941 GL62B941 K62B941 V62B871 G62B871 GL62B871 K62B871 V62B771 G62B771 GL62B771 K62B771 V62B971 G62B971 GL62B971 K62B971 V62B881 G62B881 GL62B881 K62B881 V62B781 G62B781 GL62B781 K62B781 V62B981 G62B981 GL62B981 K62B981 All Single Pole Single Throw Vacuum Relays (SPST) SPST Vacuum Relays All Vacuum Relays (SPST, SPDT, DPDT) All Vacuum Relays About Max-Gain Systems, Inc. Max-Gain Systems, Inc. carries a full line of in-series, between series, right angle, T-shaped, quick connect, handie-talkie (BLACK), pigtails (coaxial jumpers), etc… RF adapters. Our RF adapter lines are constantly expanding. We keep our RF connector and adapter lines in stock. We ship both retail and wholesale quantities. To become a dealer / wholesale user, contact us with your potential usage. Max-Gain Systems, Inc. is the number one supplier of fiberglass round hollow tube, square tube and round solid rod to the antenna manufacturing industry. We produce millions of feet a year for hundreds of different industries including but not limited to:  marine / boating, aeronautical, agriculture, construction, emergency services, etc….  We have the unique ability to sell one piece or even a semi-truck full. Feel free to prototype using our fiberglass tube and rod then contact us for a quote on a production run. At production run quantities we can cut to your desired lengths at no additional charge, and we can also perform several different fabrications (example: drilling holes in precise locations along a tube) to ensure your delivered material is ready for assembly. We have several accessory items designed for our fiberglass including but not limited to: couplers, telescoping clamps, ferrules, etc… Did you know? We will buy your used and overstock vacuum capacitors and vacuum relays? Max-Gain Systems, Inc. is the one source to liquidate your excess inventory of vacuum capacitors and vacuum relays. REDUCE warehousing costs, REDUCE aging inventory & OPTIMIZE warehouse space by selling us your unwanted inventory. New and old stock, used and even removed from working equipment, one unit to one thousand plus, you can make money as well as go green. In addition, most of the surplus items we buy are able to go right back into facilities and into the hands of individuals that need a low cost replacement to keep their plants and broadcast stations up and running. Sell your New and Used Overstock vacuum capacitors and vacuum relays by emailing us. Please include how many, the manufacturer’s part number, and their condition, along with your full contact information. We will reply within one business day.
