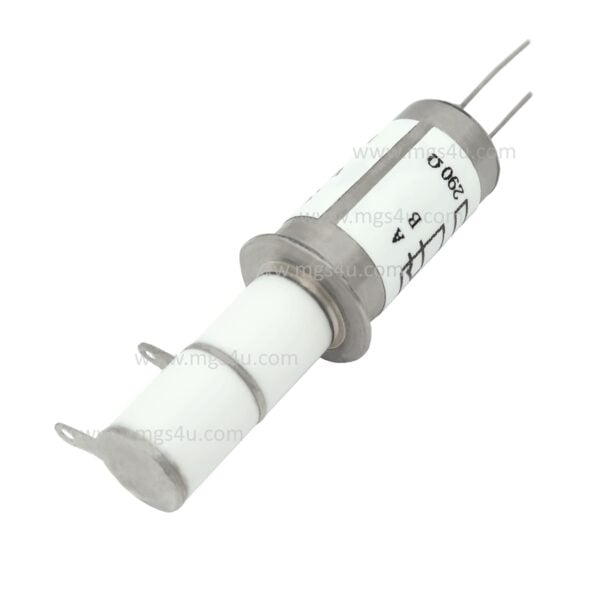

10 kV, 11 kV Peak, SPST-NC, 25 Amps, Greenstone V43B334 – NEW Vacuum Relay

Greenstone V43B334 SPST-NC Vacuum Relay Military Specs MIL-R-83725, M83725/10-003, 83725-96-0191, MIL-DTL-83725/10, MK41A334-003 Peak Test Voltage 11 kV Peak Operating Voltage 10 kV Current Carry Amps (RMS) 25 amps @ 60 Hz Contact Close Speed 10 MS (Milliseconds) Contact Release Speed 10 MS (Milliseconds) Rated Life Operations 2,000,000 Important Dimensions Max Length 1.93 in / 49 mm Max Diameter 0.65 in / 16.50 mm Mounting Hole Diameter 0.55 in / 14 mm Weight 0.6 oz / 16 g Mounting With small diameter flange for mounting through hole in chassis. An appropriately sized rubber grommet or adhesive could be utilized. Condition Brand New, unused. Guaranteed good. Data Sheets and Downloads: Spec Sheet 3D Render .Step (Other variations of this relay are sometimes available, inquire) Greenstone Gigavac GL-Vac Kilovac V43B232 G43B232 GL43B232 K43B232 V43B234 G43B234 GL43B234 K43B234 V43B332 G43B332 GL43B332 K43B332 V43B334 G43B334 GL43B334 K43B334 V43B532 G43B532 GL43B532 K43B532 V43B534 G43B534 GL43B534 K43B534 V43B732 G43B732 GL43B732 K43B732 V43B734 G43B734 GL43B734 K43B734 V43B832 G43B832 GL43B832 K43B832 V43B834 G43B834 GL43B834 K43B834 V43B932 G43B932 GL43B932 K43B932 V43B934 G43B934 GL43B934 K43B934 Need a SPDT version? Checkout the Greenstone V41C334 Greenstone V41C334 – NEW Running MORE Power? Checkout the Greenstone V32WP Greenstone V32WP – NEW All Single Pole Single Throw Vacuum Relays (SPST) SPST Vacuum Relays All Vacuum Relays (SPST, SPDT, DPDT) All Vacuum Relays About Max-Gain Systems, Inc. Max-Gain Systems, Inc. carries a full line of in-series, between series, right angle, T-shaped, quick connect, handie-talkie (BLACK), pigtails (coaxial jumpers), etc… RF adapters. Our RF adapter lines are constantly expanding. We keep our RF connector and adapter lines in stock. We ship both retail and wholesale quantities. To become a dealer / wholesale user, contact us with your potential usage. Max-Gain Systems, Inc. is the number one supplier of fiberglass round hollow tube, square tube and round solid rod to the antenna manufacturing industry. We produce millions of feet a year for hundreds of different industries including but not limited to:  marine / boating, aeronautical, agriculture, construction, emergency services, etc….  We have the unique ability to sell one piece or even a semi-truck full. Feel free to prototype using our fiberglass tube and rod then contact us for a quote on a production run. At production run quantities we can cut to your desired lengths at no additional charge, and we can also perform several different fabrications (example: drilling holes in precise locations along a tube) to ensure your delivered material is ready for assembly. We have several accessory items designed for our fiberglass including but not limited to: couplers, telescoping clamps, ferrules, etc… Did you know? We will buy your used and overstock vacuum capacitors and vacuum relays? Max-Gain Systems, Inc. is the one source to liquidate your excess inventory of vacuum capacitors and vacuum relays. REDUCE warehousing costs, REDUCE aging inventory & OPTIMIZE warehouse space by selling us your unwanted inventory. New and old stock, used and even removed from working equipment, one unit to one thousand plus, you can make money as well as go green. In addition, most of the surplus items we buy are able to go right back into facilities and into the hands of individuals that need a low cost replacement to keep their plants and broadcast stations up and running. Sell your New and Used Overstock vacuum capacitors and vacuum relays by emailing us. Please include how many, the manufacturer’s part number, and their condition, along with your full contact information. We will reply within one business day.
