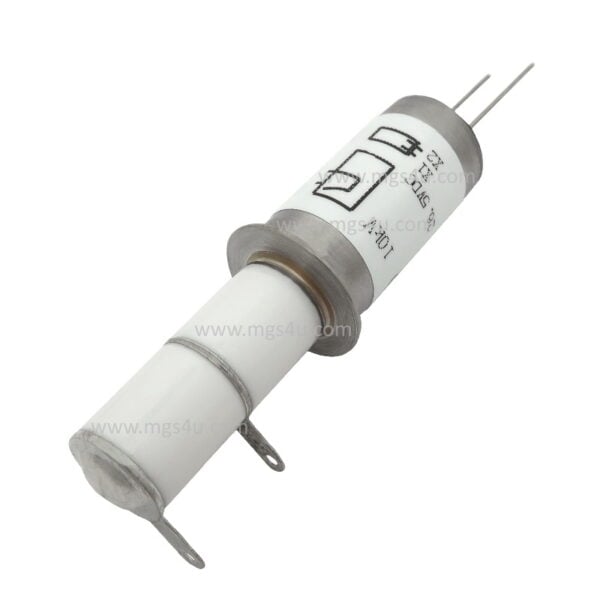

10 kV, 11 kV Peak, SPST-NO, 25 Amps, Greenstone V43A334 – NEW Vacuum Relay

Greenstone V43A334 SPST-NO Vacuum Relay Military Specs MIL-R-83725, M83725/17-003, 83725-96-0191, MIL-DTL-83725/17, MK41A334-003 Peak Test Voltage 11 kV Peak Operating Voltage 10 kV Current Carry Amps (RMS) 25 amps @ 60 Hz Contact Close Speed 10 MS (Milliseconds) Contact Release Speed 10 MS (Milliseconds) Rated Life Operations 2,000,000 Important Dimensions Max Length 1.93 in / 49 mm Max Diameter 0.65 in / 16.50 mm Mounting Hole Diameter 0.55 in / 14 mm Weight 0.6 oz / 16 g Mounting With small diameter flange for mounting through hole in chassis. An appropriately sized rubber grommet or adhesive could be utilized. Condition Brand New, unused. Guaranteed good. Data Sheets and Downloads: Spec Sheet 3D Render .Step (Other variations of this relay are sometimes available, inquire) Greenstone Gigavac GL-Vac Kilovac V43A232 G43A232 GL43A232 K43A232 V43A234 G43A234 GL43A234 K43A234 V43A332 G43A332 GL43A332 K43A332 V43A334 G43A334 GL43A334 K43A334 V43A532 G43A532 GL43A532 K43A532 V43A534 G43A534 GL43A534 K43A534 V43A732 G43A732 GL43A732 K43A732 V43A734 G43A734 GL43A734 K43A734 V43A832 G43A832 GL43A832 K43A832 V43A834 G43A834 GL43A834 K43A834 V43A932 G43A932 GL43A932 K43A932 V43A934 G43A934 GL43A934 K43A934 Need a SPDT version? Checkout the Greenstone V41C334 Greenstone V41C334 – NEW Running MORE Power? Checkout the Greenstone V32WP Greenstone V32WP – NEW All Single Pole Single Throw Vacuum Relays (SPST) SPST Vacuum Relays All Vacuum Relays (SPST, SPDT, DPDT) All Vacuum Relays About Max-Gain Systems, Inc. Max-Gain Systems, Inc. carries a full line of in-series, between series, right angle, T-shaped, quick connect, handie-talkie (BLACK), pigtails (coaxial jumpers), etc… RF adapters. Our RF adapter lines are constantly expanding. We keep our RF connector and adapter lines in stock. We ship both retail and wholesale quantities. To become a dealer / wholesale user, contact us with your potential usage. Max-Gain Systems, Inc. is the number one supplier of fiberglass round hollow tube, square tube and round solid rod to the antenna manufacturing industry. We produce millions of feet a year for hundreds of different industries including but not limited to:  marine / boating, aeronautical, agriculture, construction, emergency services, etc….  We have the unique ability to sell one piece or even a semi-truck full. Feel free to prototype using our fiberglass tube and rod then contact us for a quote on a production run. At production run quantities we can cut to your desired lengths at no additional charge, and we can also perform several different fabrications (example: drilling holes in precise locations along a tube) to ensure your delivered material is ready for assembly. We have several accessory items designed for our fiberglass including but not limited to: couplers, telescoping clamps, ferrules, etc… Did you know? We will buy your used and overstock vacuum capacitors and vacuum relays? Max-Gain Systems, Inc. is the one source to liquidate your excess inventory of vacuum capacitors and vacuum relays. REDUCE warehousing costs, REDUCE aging inventory & OPTIMIZE warehouse space by selling us your unwanted inventory. New and old stock, used and even removed from working equipment, one unit to one thousand plus, you can make money as well as go green. In addition, most of the surplus items we buy are able to go right back into facilities and into the hands of individuals that need a low cost replacement to keep their plants and broadcast stations up and running. Sell your New and Used Overstock vacuum capacitors and vacuum relays by emailing us. Please include how many, the manufacturer’s part number, and their condition, along with your full contact information. We will reply within one business day.
