8 kV, 10 kV Peak, SPST, 50 Amps Jennings RF72-26N1107 NEW Vacuum Relay

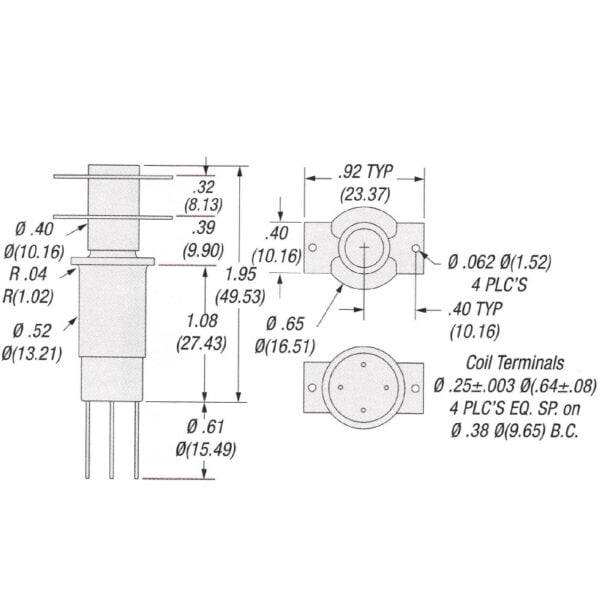

Jennings RF72-26N1107 ceramic vacuum relay Test Voltage 10 kV Peak Voltage 8 kV Current Carry Amps (RMS) 50 amps Contact Close Speed 2.5 MS (Milliseconds) Contact Release Speed 2.5 MS (Milliseconds) Coil Resistance 80 Ohms Coil Voltage 26.5 VDC Rated Life Operations 2,000,000 Important Dimensions Max Length 2.56 in / 66.02 mm Max Diameter 0.65 in / 16.51 mm Mounting Flange 0.92 in / 23.37 mm Weight 1.00 oz / 28.00 g Mounting With small diameter flange for mounting through hole, an appropriately sized rubber grommet could easily be utilized. Condition New, unused, old stock, guaranteed good. Spec Sheet These new, unused Jennings quality RF rated latching vacuum relays (10 kV test!) have an outstanding 60 hz continuous current handling capability of 50 Amps! The latching feature provides two momentary duty coils. Pulse one coil to latch contacts in closed position, and pulse other coil to latch contacts in open position. No need to keep power to coils to keep contacts in desired position, once selected. Can easily be controlled with three wires.tie (-) together, and by means of momentary pushbutton switches, briefly supply 24 to 30 VDC to the desired “ ” coil to open or close contacts. A small ½ amp supply should be plenty. Each of the two contacts provides two oversized (0.4 inch wide!) tinned tabs, allowing leads to be connected to both sides if desired to divide current between multiple smaller leads.   Sell your New and Used Overstock vacuum capacitors and vacuum relays by emailing us. Please include how many, the manufacturer’s part number, and their condition, along with your full contact information. We will reply within one business day. All Single Pole Single Throw Vacuum Relays (SPST) SPST Vacuum Relays All Vacuum Relays (SPST, SPDT, DPDT) All Vacuum Relays About Max-Gain Systems, Inc. Max-Gain Systems, Inc. carries a full line of in-series, between series, right angle, T-shaped, quick connect, handie-talkie (BLACK), pigtails (coaxial jumpers), etc… RF adapters. Our RF adapter lines are constantly expanding. We keep our RF connector and adapter lines in stock. We ship both retail and wholesale quantities. To become a dealer / wholesale user, contact us with your potential usage. Max-Gain Systems, Inc. is the number one supplier of fiberglass round hollow tube, square tube and round solid rod to the antenna manufacturing industry. We produce millions of feet a year for hundreds of different industries including but not limited to:  marine / boating, aeronautical, agriculture, construction, emergency services, etc….  We have the unique ability to sell one piece or even a semi-truck full. Feel free to prototype using our fiberglass tube and rod then contact us for a quote on a production run. At production run quantities we can cut to your desired lengths at no additional charge, and we can also perform several different fabrications (example: drilling holes in precise locations along a tube) to ensure your delivered material is ready for assembly. We have several accessory items designed for our fiberglass including but not limited to: couplers, telescoping clamps, ferrules, etc… Did you know? We will buy your used and overstock vacuum capacitors and vacuum relays? Max-Gain Systems, Inc. is the one source to liquidate your excess inventory of vacuum capacitors and vacuum relays. REDUCE warehousing costs, REDUCE aging inventory & OPTIMIZE warehouse space by selling us your unwanted inventory. New and old stock, used and even removed from working equipment, one unit to one thousand plus, you can make money as well as go green. In addition, most of the surplus items we buy are able to go right back into facilities and into the hands of individuals that need a low cost replacement to keep their plants and broadcast stations up and running. Sell your New and Used Overstock vacuum capacitors and vacuum relays by emailing us. Please include how many, the manufacturer’s part number, and their condition, along with your full contact information. We will reply within one business day.
