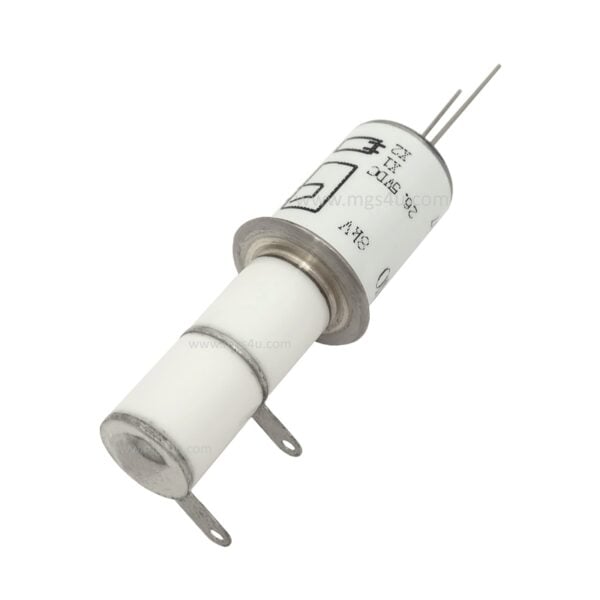

8 kV, 9 kV Peak, SPST-NO, 12 Amps, Greenstone VF47A334 – NEW Vacuum Relay

Greenstone VF47A334 SPST-NO Vacuum Relay Military Specs MIL-R-83725, M83725/12-002, 83725-96-0220 Peak Test Voltage 9 kV Peak Operating Voltage 8 kV Current Carry Amps (RMS) 12 amps @ 60 Hz Contact Close Speed 10 MS (Milliseconds) Contact Release Speed 10 MS (Milliseconds) Rated Life Operations 2,000,000 Important Dimensions Max Length 1.93 in / 49 mm Max Diameter 0.65 in / 16.50 mm Mounting Hole Diameter 0.55 in / 14 mm Weight 0.6 oz / 16 g Mounting With small diameter flange for mounting through hole in chassis. An appropriately sized rubber grommet or adhesive could be utilized. Condition Brand New, unused. Guaranteed good. Spec Sheet (Other variations of this relay are sometimes available, inquire) Greenstone Gigavac GL-Vac Kilovac VF47A232 G47A232 GL47A232 K47A232 VF47A234 G47A234 GL47A234 K47A234 VF47A332 G47A332 GL47A332 K47A332 VF47A334 G47A334 GL47A334 K47A334 VF47A532 G47A532 GL47A532 K47A532 VF47A534 G47A534 GL47A534 K47A534 VF47A732 G47A732 GL47A732 K47A732 VF47A734 G47A734 GL47A734 K47A734 VF47A832 G47A832 GL47A832 K47A832 VF47A834 G47A834 GL47A834 K47A834 VF47A932 G47A932 GL47A932 K47A932 VF47A934 G47A934 GL47A934 K47A934 Need a SPDT version? Checkout the Greenstone V41C334 Greenstone V41C334 – NEW Running MORE Power? Checkout the Greenstone V32WP Greenstone V32WP – NEW All Single Pole Single Throw Vacuum Relays (SPST) SPST Vacuum Relays All Vacuum Relays (SPST, SPDT, DPDT) All Vacuum Relays About Max-Gain Systems, Inc. Max-Gain Systems, Inc. carries a full line of in-series, between series, right angle, T-shaped, quick connect, handie-talkie (BLACK), pigtails (coaxial jumpers), etc… RF adapters. Our RF adapter lines are constantly expanding. We keep our RF connector and adapter lines in stock. We ship both retail and wholesale quantities. To become a dealer / wholesale user, contact us with your potential usage. Max-Gain Systems, Inc. is the number one supplier of fiberglass round hollow tube, square tube and round solid rod to the antenna manufacturing industry. We produce millions of feet a year for hundreds of different industries including but not limited to:  marine / boating, aeronautical, agriculture, construction, emergency services, etc….  We have the unique ability to sell one piece or even a semi-truck full. Feel free to prototype using our fiberglass tube and rod then contact us for a quote on a production run. At production run quantities we can cut to your desired lengths at no additional charge, and we can also perform several different fabrications (example: drilling holes in precise locations along a tube) to ensure your delivered material is ready for assembly. We have several accessory items designed for our fiberglass including but not limited to: couplers, telescoping clamps, ferrules, etc… Did you know? We will buy your used and overstock vacuum capacitors and vacuum relays? Max-Gain Systems, Inc. is the one source to liquidate your excess inventory of vacuum capacitors and vacuum relays. REDUCE warehousing costs, REDUCE aging inventory & OPTIMIZE warehouse space by selling us your unwanted inventory. New and old stock, used and even removed from working equipment, one unit to one thousand plus, you can make money as well as go green. In addition, most of the surplus items we buy are able to go right back into facilities and into the hands of individuals that need a low cost replacement to keep their plants and broadcast stations up and running. Sell your New and Used Overstock vacuum capacitors and vacuum relays by emailing us. Please include how many, the manufacturer’s part number, and their condition, along with your full contact information. We will reply within one business day.
