BNC Plug RF Connector 50 Ohm for RG316 – Crimp

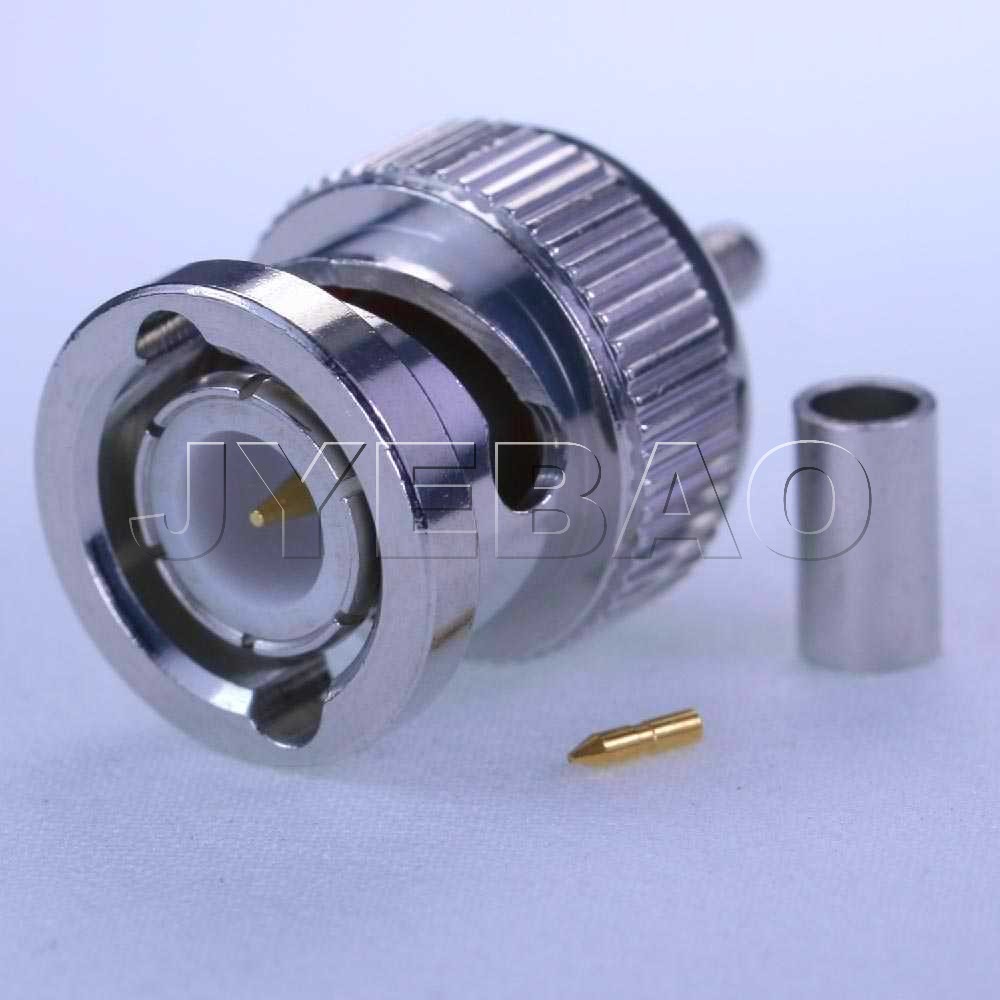

Product Description JYEBAO BNC3100-0316 – BNC Plug (Male) Crimp Connector for RG316 (50 Ω, DC–4 GHz) The BNC3100-0316 is a straight BNC plug (male) coax connector designed for crimp cable termination onto RG316 (also compatible with RG174 / RG188 per datasheet). A practical choice for building reliable RF patch leads, test cables and equipment interconnects using a robust bayonet-coupled BNC interface. Common use cases RG316 test leads: build flexible, compact BNC patch cables for benches and field kits. Instrumentation interconnects: terminate RG316 to interface oscilloscopes, signal generators, counters, and RF modules that use BNC. General RF cable assemblies: quick production-friendly termination using standard crimp tooling. Key features Series: BNC Gender: Plug (Conventional Male) Termination: Crimp (centre pin ferrule) Impedance: 50 Ω Frequency range: DC–4 GHz VSWR: ≤ 1.25 (DC–4 GHz) RoHS: Compliant Electrical specifications (datasheet) Impedance 50 Ω Frequency range DC to 4 GHz VSWR ≤ 1.25 (DC to 4 GHz) Insertion loss ≤ 0.1 × f(GHz) dB Insulation resistance ≥ 5000 MΩ Contact resistance (inner) ≤ 1.5 mΩ Contact resistance (outer) ≤ 1.0 mΩ Dielectric withstand (sea level) 1500 V rms Working voltage (sea level) 500 V rms Mechanical & environmental (datasheet) Interface: MIL-STD-348B Recommended coupling nut torque: 0.6 to 2.5 in-lb Durability (mating): ≥ 500 cycles Temperature range: -65°C to 165°C Weight: 8.06 g Crimp tooling (datasheet) Crimping tool: CRT-1 or CRT-2 Crimp insert: INSERT-A Assembly notes (summary of datasheet steps) Strip cable to the dimensions shown in the datasheet. Slide ferrule onto cable. Crimp centre pin to the centre conductor using the insert section specified. Loosen braid and slide connector body into place. Crimp ferrule using the specified hex section of the insert. Downloads Datasheet – BNC3100-0316 (PDF) RFShopUK – Other BNC Products
