BNC Plug RF Connector 75 Ohm for RG179 – Right Angle Crimp

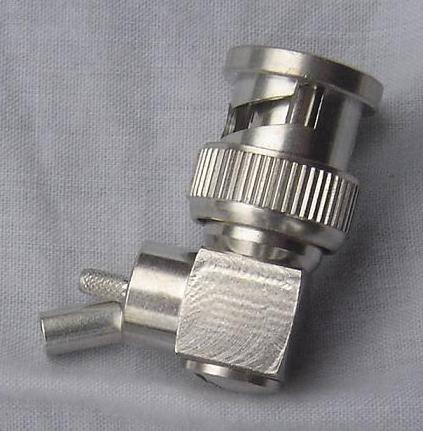

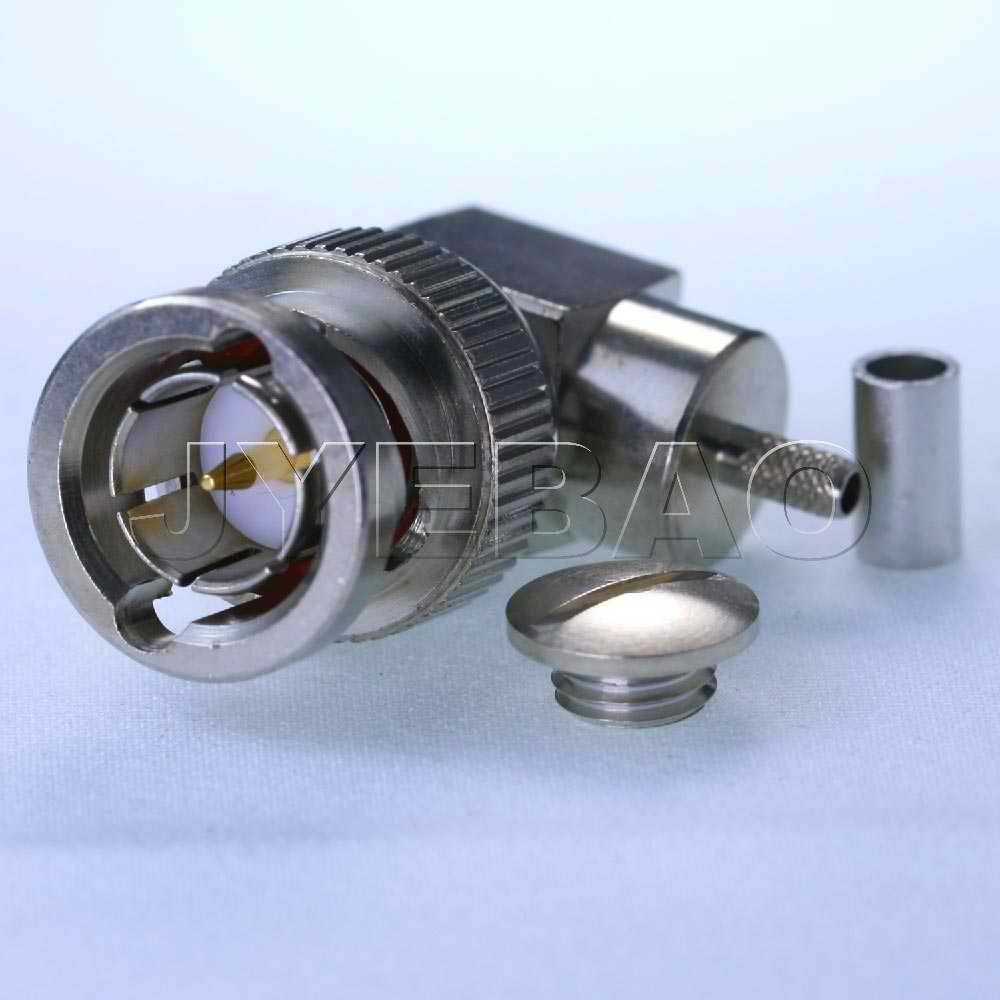

Product Description JYEBAO BNC3100-9179 – 75Ω BNC Plug (Male) Right Angle Connector for RG179 (DC–2 GHz) The BNC3100-9179 is a 75 Ω right-angle BNC plug (male) connector designed for RG179 / RG179-FEP coax. The right-angle body reduces bend stress and is ideal for tight spaces behind instruments, racks, and enclosures. Common use cases 75Ω RF / IF interconnects: build RG179 patch leads where controlled impedance matters. Video & instrumentation cabling: BNC is widely used in 75Ω systems; confirm your bandwidth and connector rating for your application (this part is specified to DC–2 GHz). Dense panel wiring: right-angle geometry helps routing and reduces strain on the connector and cable. Key features Series: BNC Gender: Plug (Conventional Male) Geometry: Right Angle Impedance: 75 Ω Frequency range: DC–2 GHz VSWR: ≤ 1.2 (DC–2 GHz) Compatible cables: RG179, RG179-FEP Tooling: CRT-1 or CRT-2 with INSERT-A RoHS: Compliant Electrical specifications (datasheet) Impedance 75 Ω Frequency range DC to 2 GHz VSWR ≤ 1.2 (DC to 2 GHz) Insertion loss ≤ 0.1 × f(GHz) dB Insulation resistance ≥ 5000 MΩ Contact resistance (inner) ≤ 1.5 mΩ Contact resistance (outer) ≤ 1.0 mΩ Dielectric withstand (sea level) 1500 Vrms Working voltage (sea level) 500 Vrms Mechanical & environmental (datasheet) Interface: MIL-STD-348B Recommended coupling torque: 0.6 to 2.5 in-lb Coupling nut retention force: ≥ 101.2 lbs Contact captivation (axial): ≥ 6.1 lbs Durability: ≥ 500 mating cycles Temperature range: -65°C to 165°C Materials & plating (datasheet) Body / nut / ferrule / barrel / washer / coupling nut: Brass, Tin-Zinc-Copper alloy plating (100 µin) over copper (50 µin) Contact pin: Brass, Gold (4 µin) over Nickel-Phosphorus alloy (80 µin) over copper (20 µin) Insulator: PTFE (Teflon) Gasket: Silicone Weight: 18.55 g Cable assembly (from official instruction sheet) Strip dimensions: 15.5 mm / 10.5 mm / 2.7 mm (strip as shown) Slide ferrule onto the cable. Wrap the braid upwards as shown. Fit the centre conductor onto the contact pin and solder at the indicated point. Slide the ferrule up and crimp (use the 3.3 mm / 0.130" hex section of INSERT-A). Finally screw the nut onto the connector body. RF plot (S11 marker example) S11 @ 2.0000 GHz: -21.93 dB (from plot) Downloads Datasheet – BNC3100-9179 (PDF) RFShopUK – Other BNC Products
