N-Type Jack to LC Plug RF Adapter 50 Ohm DC-1 GHz

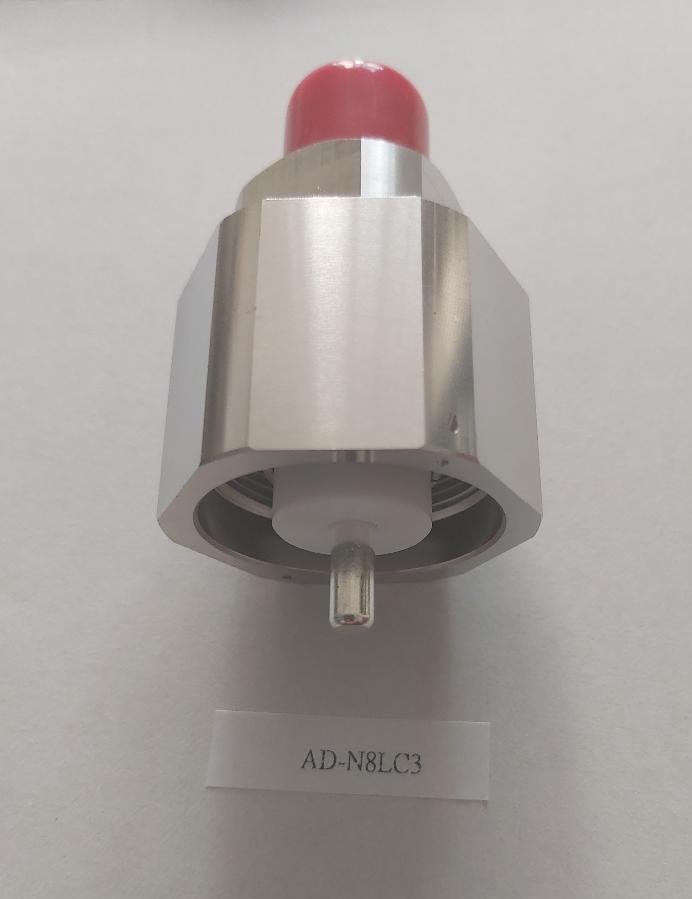

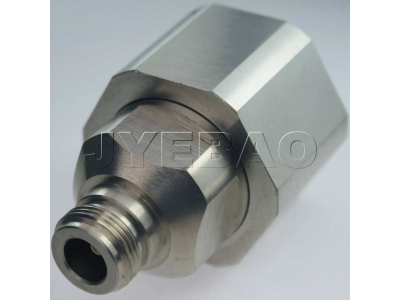

Product Description Coaxial Adapter – N Jack (Female) to LC Plug (Male), 50 Ω, DC–1 GHz (VSWR ≤ 1.2) Part Number: AD-N8LC3 Manufacturer: Jye Bao The AD-N8LC3 is a straight 50 Ω coaxial adapter that converts an N Type Jack (female socket) interface to an LC Type Plug (male). LC coax connectors are commonly used where higher voltage handling and robust RF interconnects are required, while N Type is a widespread standard on RF equipment, panels and test setups. Note: Datasheet specifies DC–1 GHz performance with VSWR ≤ 1.2. (Do not use this adapter above the stated range if RF match is critical.) Common Use Cases Test & measurement bridging: Connect LC-based fixtures/cables to instruments, attenuators, couplers or panels that use N Type. High-voltage RF interconnects: LC coax connectors are typically selected for high power / high voltage environments (extended dielectric design), making this adapter useful when you need to interface that LC side to standard N hardware. Legacy / specialist RF systems: Interface older or niche LC-equipped components to modern N-Type infrastructure without re-terminating cables. Lab and integration work: Quick connector series conversion when prototyping or building enclosures/panels. Key Features Interface 1: N Type Jack (Conventional Female / Socket) Interface 2: LC Type Plug (Conventional Male) (Small LC standard plug per datasheet) Impedance: 50 Ω Frequency range: DC–1 GHz VSWR: ≤ 1.2 (DC–1 GHz) Electrical Specifications (Datasheet) Impedance 50 Ω Frequency range DC to 1 GHz VSWR ≤ 1.2 (DC to 1 GHz) Insertion loss ≤ 0.04 × √f(GHz) dB Insulation resistance ≥ 5000 MΩ Dielectric withstanding voltage 2500 Vrms Working voltage 1000 Vrms Mechanical & Environmental (Datasheet) Interface standard: MIL-STD-348B (N / LC) Durability (mating): ≥ 500 cycles Temperature range: -65°C to 165°C Materials & Plating (Datasheet) Body / coupling nut / ring: Brass, Tin-Zinc-Copper-Alloy plating (100 µin) over Copper (50 µin) Contact pin: Beryllium Copper, Silver (150 µin) over Copper (50 µin) Insulator: Teflon (PTFE) Gasket: Silicon Outline Dimensions (for fit-checking) Overall length: 68.2 mm (2.685″) Across flats (hex): 38.14 mm (1.502″) Max diameter (ref): 41.2 mm (1.622″) Downloads Datasheet – AD-N8LC3 (PDF) RFShopUK – Other N Adapters
