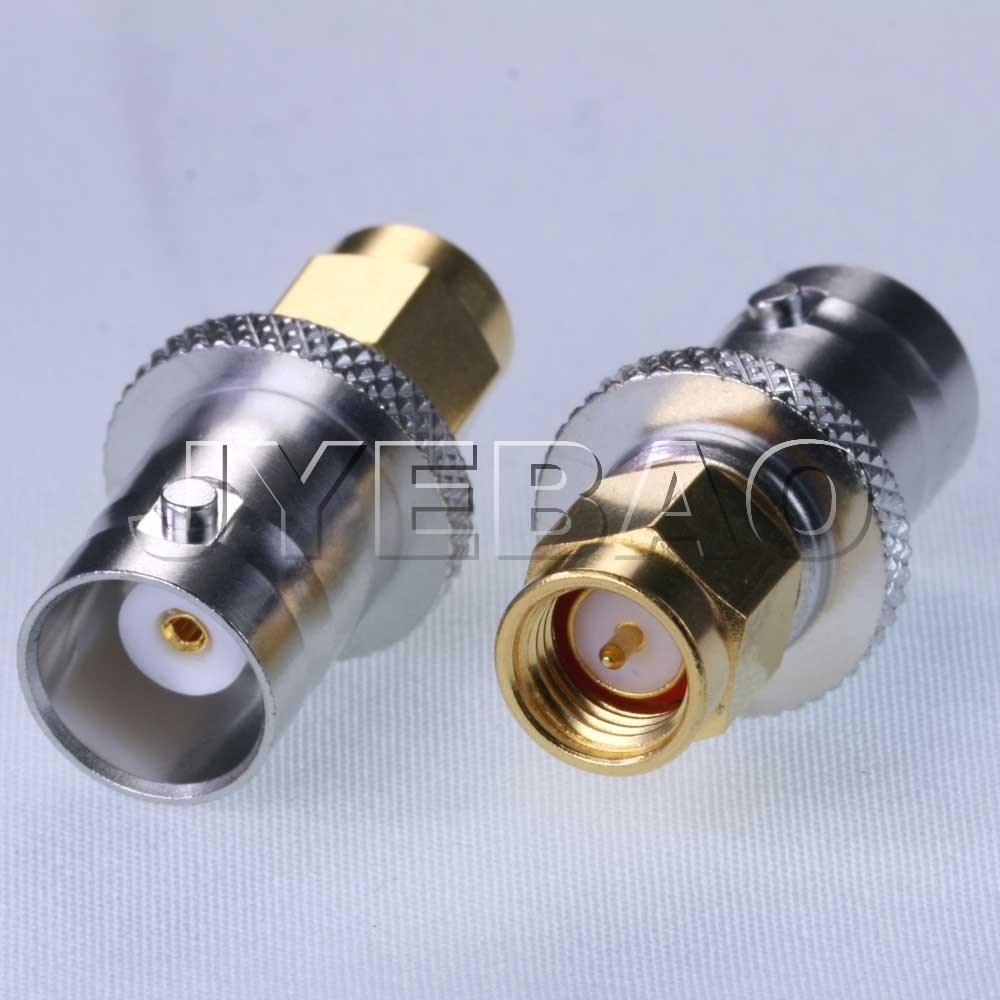

SMA Plug to BNC Jack RF Adapter 50 Ohm DC-8 GHz

Product Description Compact, straight RF adapter transitioning SMA plug (male pin) to BNC jack (female) for test gear, radios and lab benches. Rated DC–8 GHz with VSWR ≤ 1.2 and low insertion loss. Why you’ll like it Wideband matching: DC–8 GHz, VSWR ≤ 1.2 keeps reflections down across common bands. Low loss: IL ≤ 0.05 × √f(GHz) dB (per adapter). Durable build: Brass bodies; SMA side gold-plated over nickel, BNC side tin-zinc-copper plated; PTFE insulator; gold-plated phosphor-bronze contact. Lab-friendly mechanics: MIL-STD-348 interface compatibility; typical weight 7.7 g. Typical uses Join SMA-terminated leads to BNC-female instruments Quick adapter for spectrum/network analysers, SDRs, and RF benches Part Number: Jay Bao AD-A3B8 , DATASHEET
