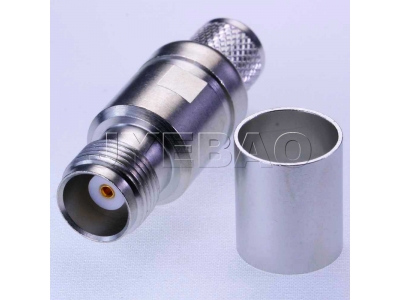

TNC Jack RF Connector for LMR400 – EZ-Fit Crimp

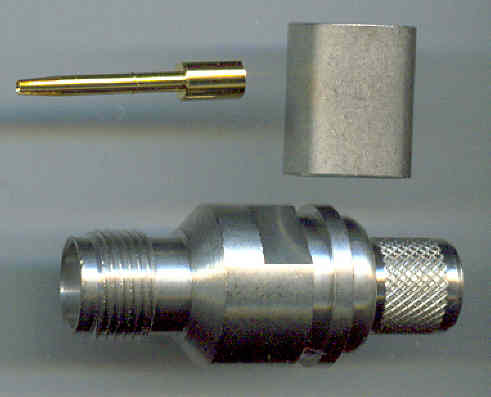

Product Description Part Number: TNC81EZ-L400 TNC Jack (Conventional Female), Crimp, LMR400, TNC81EZ-L400 EZ in part number indicates “easy fit”. It is important that the instructions on the data sheet are followed carefully. Particularly the inner wire has to be deburred on the cut to prevent damage during assembly. NOTE: These connectors only work with solid core LMR400. A better choice for a multistrand  400 cable) would be TNC8100-L400 (for a soldered inner connection) or TNC8100-0213 (for a soldered or crimped inner connection)  Click here for datasheet
