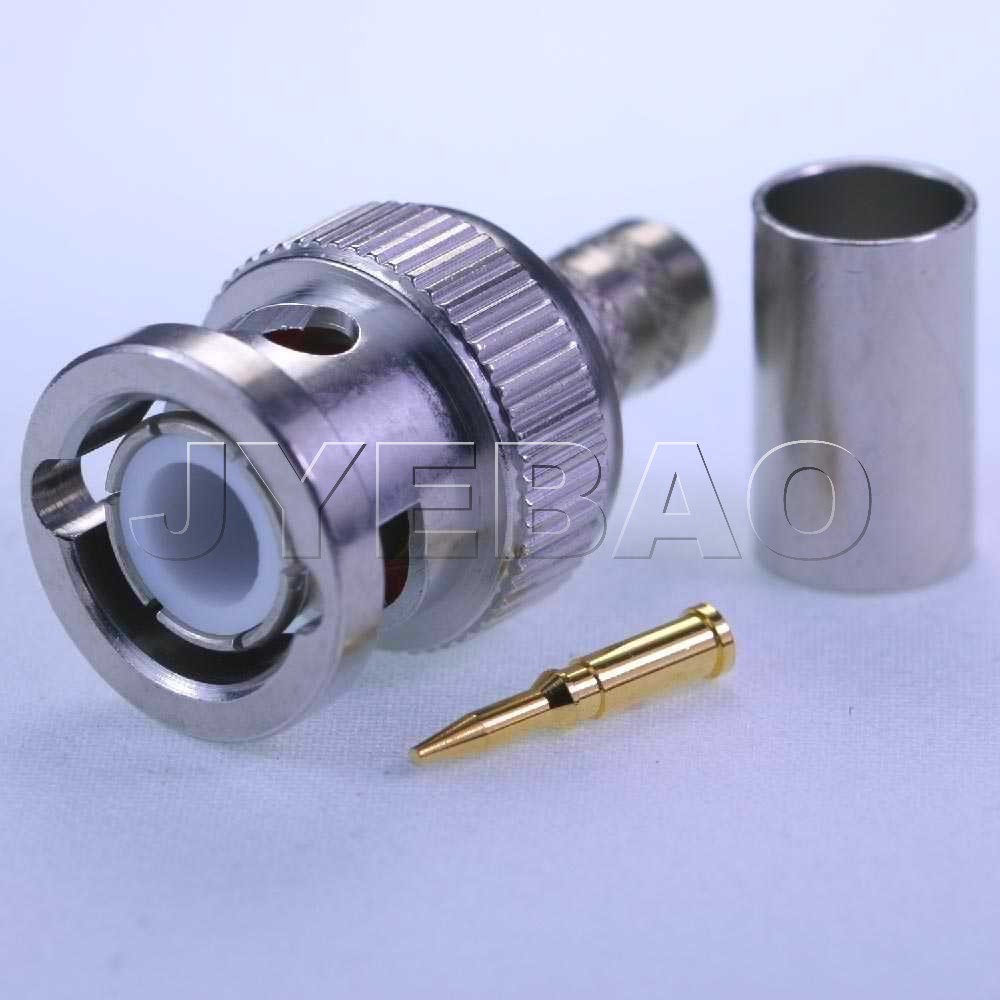

Product Description JYEBAO BNC3100-L240 – BNC Plug (Male) Crimp Connector for LMR240 / JBY240 (50 Ω, DC–1.9 GHz) The BNC3100-L240 is a straight BNC plug (male) coax connector designed for crimp termination onto LMR240 / JBY240 class coax cable. It’s a practical choice for building robust BNC patch leads where you want the handling/attenuation benefits of a ~0.240" OD cable, while keeping the fast bayonet BNC interface. Common use cases LMR240 / JBY240 BNC patch leads: build durable RF cables for benches, comms racks, or field kits. Instrumentation interconnects: terminate mid-size coax to BNC equipment ports (signal sources, counters, general RF gear). Antenna & RF distribution runs (where BNC is required): use LMR240-class cable then finish with BNC on the equipment end. Key features Series: BNC Gender: Plug (Conventional Male) Termination: Crimp (centre pin ferrule) Compatible cable: LMR240 / JBY240 Impedance: 50 Ω Frequency range: DC–1.9 GHz VSWR: ≤ 1.2 (DC–1.9 GHz) RoHS: Compliant Electrical specifications (datasheet) Impedance 50 Ω Frequency range DC to 1.9 GHz VSWR ≤ 1.2 (DC to 1.9 GHz) Insertion loss ≤ 0.1 × f(GHz) dB Insulation resistance ≥ 5000 MΩ Contact resistance (inner) ≤ 1.5 mΩ Contact resistance (outer) ≤ 1.0 mΩ Dielectric withstand (sea level) 1500 V rms Working voltage (sea level) 500 V rms Mechanical & environmental (datasheet) Interface: MIL-STD-348B Recommended coupling torque: 0.6 to 2.5 in-lb Durability: ≥ 500 mating cycles Temperature range: -65°C to 165°C Crimp tooling (datasheet) Crimping tool: CRT-1 or CRT-2 Crimp insert: INSERT-E Cable assembly (from instruction sheet) Strip dimensions: 16 mm / 8.1 mm / 4.7 mm (strip as shown in drawing) Slide ferrule onto cable. Fit centre pin onto the centre conductor and solder or crimp (if crimping, use the square 1.6 mm section of INSERT-E). Loosen braid and slide connector body into place. Slide ferrule up to the connector and crimp (use the hex 6.5 mm section of INSERT-E). Materials & plating (datasheet) Body / coupling nut: Brass (Tin-Zinc-Copper alloy plating over copper underplate) Contact pin: plated (gold over nickel-phosphorus alloy over copper underplate) Insulator: PTFE (Teflon) Gasket: Silicone Downloads Datasheet – BNC3100-L240 (PDF) RFShopUK – Other BNC Products
