SMA Plug RF Connector 50 Ohm – 2-Hole Flange DC-27 GHz

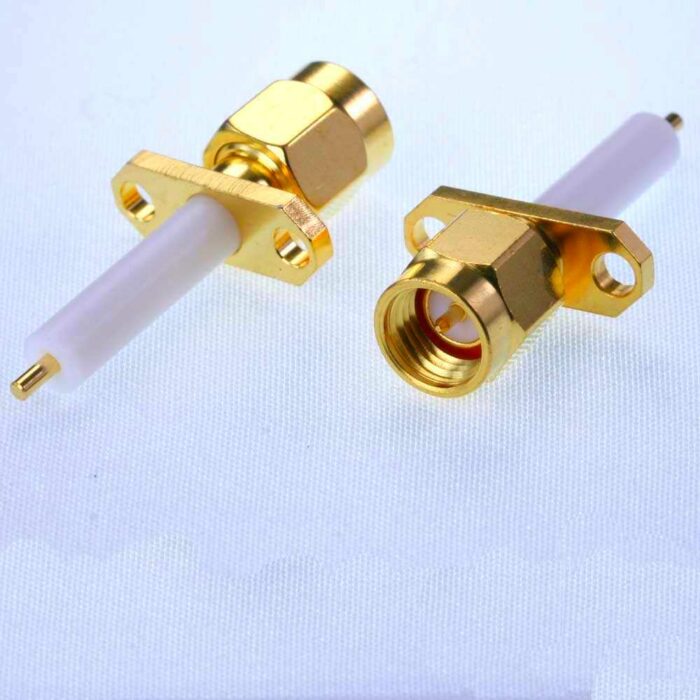

Product Description JYEBAO SMA362L-0000 – SMA Plug (Male) 2-Hole Flange Mount, 50 Ω, DC–27 GHz The SMA362L-0000 is a high-frequency SMA plug (male) straight connector designed for reliable panel/enclosure mounting using a Ø16 mm 2-hole flange. It provides a robust, repeatable RF interface for microwave assemblies, test fixtures, and instrumentation I/O. Common use cases RF enclosure feedthroughs: Add a rugged SMA interface to metal chassis panels. Test fixtures & lab jigs: Flange mounting improves repeatability vs free-hanging connectors. Microwave modules: Suitable for filters, couplers, attenuator boxes, switch housings and instrument ports up to 27 GHz. Intermate ecosystems: Often used in systems that mate across SMA / 3.5 mm / 2.92 mm hardware (verify requirements for your application). Key features Series: SMA Gender: Plug (Male) Mounting: Ø16 mm flange, 2-hole Impedance: 50 Ω Frequency range: DC–27 GHz VSWR: ≤ 1.3 (DC–27 GHz) Specifications Impedance 50 Ω Frequency range DC to 27 GHz VSWR ≤ 1.3 (DC to 27 GHz) Insertion loss ≤ 0.04 × f(GHz) dB Insulation resistance ≥ 5000 MΩ Contact resistance (inner) ≤ 3 mΩ Contact resistance (outer) ≤ 2 mΩ Dielectric withstand (sea level) 1500 V rms Working voltage (sea level) 500 V rms Mechanical & environmental Recommended coupling torque: 4 in-lb Coupling proof torque: 5.3 in-lb Durability: ≥ 100 mating cycles Temperature range: -65°C to 165°C RoHS: Compliant Materials & plating Body / coupling nut / contact: Brass, gold plated (with underplating layers as per datasheet) Insulator: PTFE (Teflon) Gasket: Silicon Dimensions (fit check) Flange diameter: Ø16 mm Mounting holes: Ø2.6 mm × 2 Hex: 8 mm (A/F) Contact: Ø1.27 mm (round) Weight: 3.92 g Downloads Datasheet – SMA362L-0000 (PDF) RFShopUK – Other SMA Products
