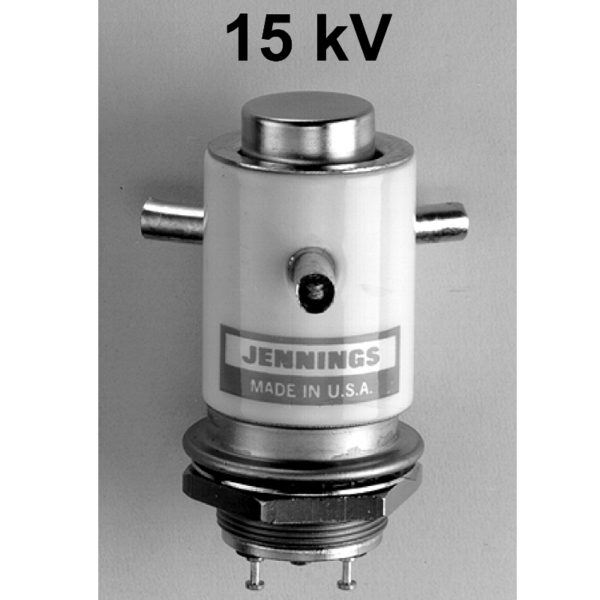

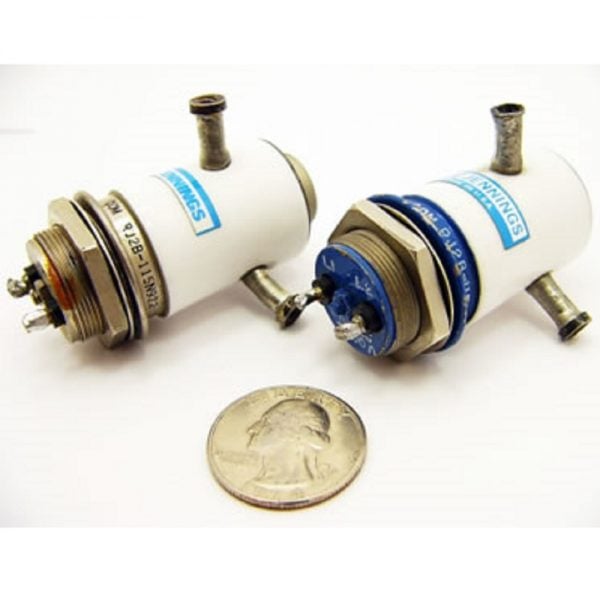

12 kV, 15 kV Peak, SPDT, 50 Amps, Jennings RJ2B-115N922 Vacuum Relay

Jennings RJ2B-115N922 Vacuum Relay SPDT Operating Voltage 12 kV Test Voltage 15 kV Current Carry Amps (RMS) 50 amps @ 60 Hz Contact Close Speed 18 MS (Milliseconds) Contact Release Speed 9 MS (Milliseconds) Rated Life Operations 500,000 Important Dimensions Max Length 2.16 in / 54.86 mm Max Diameter 1.03 in / 26.16 mm Weight 3.00 oz / 85.00 g Contacts Some may have threaded contacts, some may be bare wire contacts, and some may have a mixture of both (We cannot guarantee what mixture of contacts you will receive). Mounting Threaded base with mounting nut included. Condition Removed From Equipment. Guaranteed Good. Spec Sheet (Other variations of the RJ2-series are sometimes available, inquire) Jennings RJ2C (flange version) Jennings RJ2B (threaded version) (Other variations of this relay by other manufacturers are sometimes available, inquire) Gigavac G2WF Kilovac KC-2 VC-2 About Max-Gain Systems, Inc. Max-Gain Systems, Inc. carries a full line of in-series, between series, right angle, T-shaped, quick connect, handie-talkie (BLACK), pigtails (coaxial jumpers), etc… RF adapters. Our RF adapter lines are constantly expanding. We keep our RF connector and adapter lines in stock. We ship both retail and wholesale quantities. To become a dealer / wholesale user, contact us with your potential usage. Max-Gain Systems, Inc. is the number one supplier of fiberglass round hollow tube, square tube and round solid rod to the antenna manufacturing industry. We produce millions of feet a year for hundreds of different industries including but not limited to:  marine / boating, aeronautical, agriculture, construction, emergency services, etc….  We have the unique ability to sell one piece or even a semi-truck full. Feel free to prototype using our fiberglass tube and rod then contact us for a quote on a production run. At production run quantities we can cut to your desired lengths at no additional charge, and we can also perform several different fabrications (example: drilling holes in precise locations along a tube) to ensure your delivered material is ready for assembly. We have several accessory items designed for our fiberglass including but not limited to: couplers, telescoping clamps, ferrules, etc… Sell your New and Used Overstock vacuum capacitors and vacuum relays by emailing us. Please include how many, the manufacturer’s part number, and their condition, along with your full contact information. We will reply within one business day.
