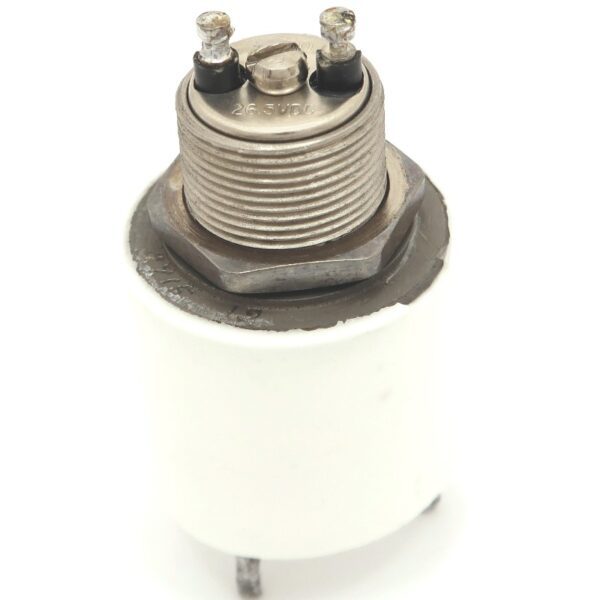

8 kV, 10 kV Peak, SPDT, 18 Amps, Jennings RJ1A-26N969 Vacuum Relay

Jennings RJ1A-26N969 Vacuum Relay Operating Voltage 8 kV Peak Voltage 10 kV Current Carry Amps (RMS) 18 Amps @ 60 Hz Contact Close Speed 8 MS (Milliseconds) Contact Release Speed 8 MS (Milliseconds) Rated Life Operations 2,000,000 Important Dimensions Max Length 2.75 in / 69.85 mm Max Diameter 1.38 in / 35.05 mm Mounting Hole Diameter 0.55 in / 14.05 mm Weight 1.00 oz / 28.00 g Mounting Thread mount Condition Removed from equipment, tested and hipotted. Satisfaction guaranteed! (Why risk your equipment on an “unknown”?) Spec Sheet (Other manufacturers make other variations of this relay and are sometimes available, inquire) VHC-1 Kilovac HC-1 Gigavac GH-1 Better mounting methods available (below), both types have identical threaded bases. Click here for discussion of mounting methods for these two types of relays. Click here for photos illustrating grommet mounting options. Running LESS Power? Checkout the Greenstone VHC-1 Greenstone VHC-1 – NEW Running MORE Power? Checkout the Greenstone VC-2 Greenstone VC-2 – NEW All Single Pole Double Throw Vacuum Relays (SPDT) SPDT Vacuum Relays All Vacuum Relays (SPST, SPDT, DPDT) All Vacuum Relays About Max-Gain Systems, Inc. Max-Gain Systems, Inc. carries a full line of in-series, between series, right angle, T-shaped, quick connect, handie-talkie (BLACK), pigtails (coaxial jumpers), etc… RF adapters. Our RF adapter lines are constantly expanding. We keep our RF connector and adapter lines in stock. We ship both retail and wholesale quantities. To become a dealer / wholesale user, contact us with your potential usage. Max-Gain Systems, Inc. is the number one supplier of fiberglass round hollow tube, square tube and round solid rod to the antenna manufacturing industry. We produce millions of feet a year for hundreds of different industries including but not limited to:  marine / boating, aeronautical, agriculture, construction, emergency services, etc….  We have the unique ability to sell one piece or even a semi-truck full. Feel free to prototype using our fiberglass tube and rod then contact us for a quote on a production run. At production run quantities we can cut to your desired lengths at no additional charge, and we can also perform several different fabrications (example: drilling holes in precise locations along a tube) to ensure your delivered material is ready for assembly. We have several accessory items designed for our fiberglass including but not limited to: couplers, telescoping clamps, ferrules, etc… Did you know? We will buy your used and overstock vacuum capacitors and vacuum relays? Max-Gain Systems, Inc. is the one source to liquidate your excess inventory of vacuum capacitors and vacuum relays. REDUCE warehousing costs, REDUCE aging inventory & OPTIMIZE warehouse space by selling us your unwanted inventory. New and old stock, used and even removed from working equipment, one unit to one thousand plus, you can make money as well as go green. In addition, most of the surplus items we buy are able to go right back into facilities and into the hands of individuals that need a low cost replacement to keep their plants and broadcast stations up and running. Sell your New and Used Overstock vacuum capacitors and vacuum relays by emailing us. Please include how many, the manufacturer’s part number, and their condition, along with your full contact information. We will reply within one business day.
