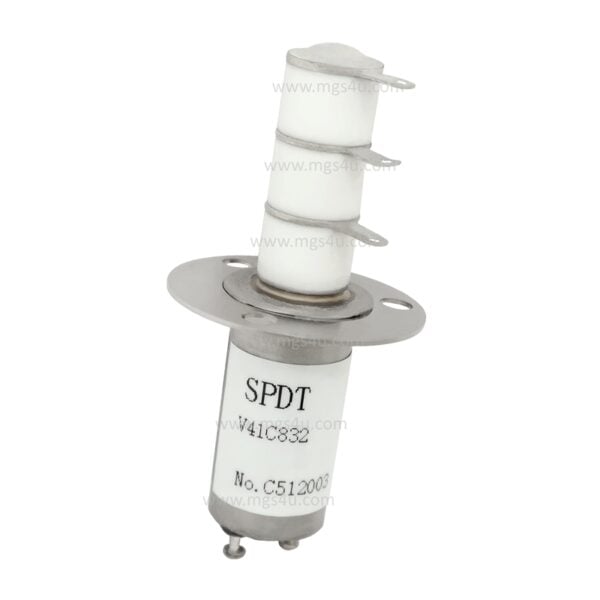

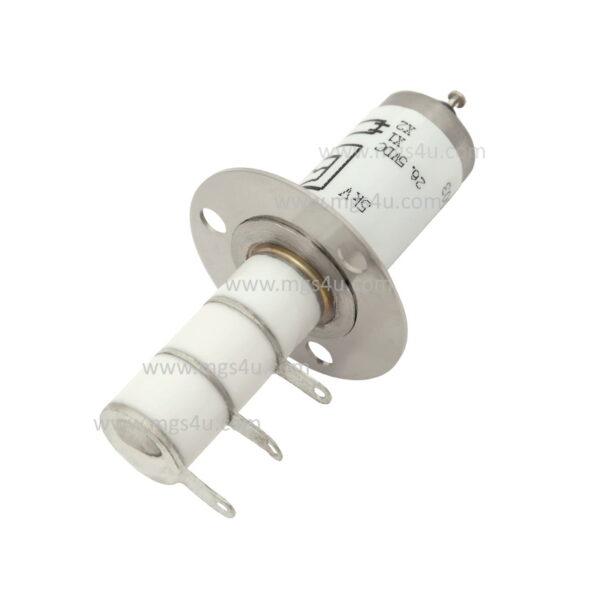

5 kV, 6 kV Peak, SPDT, 30 Amps, Greenstone V41C832 – NEW Vacuum Relay

Greenstone V41C334 SPDT Vacuum Relay Military Specs MIL-R-83725, M83725/23-011, MK41C832-011, 83725-96-0195 Peak Test Voltage 6 kV Peak Operating Voltage 5 kV Current Carry Amps (RMS) 30 amps @ 60 Hz Contact Close Speed 10 MS (Milliseconds) Contact Release Speed 10 MS (Milliseconds) Rated Life Operations 2,000,000 Important Dimensions Max Length 2.13 in / 54 mm Max Diameter 1.12 in / 28.5 mm Mounting Hole Diameter 0.55 in / 14 mm Weight 0.8 oz / 22 g Mounting With small diameter flange for mounting through hole in chassis. An appropriately sized rubber grommet or adhesive could be utilized. Condition Brand New, unused. Guaranteed good. Spec Sheet (Other variations of this relay are sometimes available, inquire) Greenstone Gigavac GL-Vac Kilovac V41C232 G41C232 GL41C232 K41C232 V41C234 G41C234 GL41C234 K41C234 V41C332 G41C332 GL41C332 K41C332 V41C334 G41C334 GL41C334 K41C334 V41C532 G41C532 GL41C532 K41C532 V41C534 G41C534 GL41C534 K41C534 V41C732 G41C732 GL41C732 K41C732 V41C734 G41C734 GL41C734 K41C734 V41C832 G41C832 GL41C832 K41C832 V41C834 G41C834 GL41C834 K41C834 V41C932 G41C932 GL41C932 K41C932 V41C934 G41C934 GL41C934 K41C934 Running LESS Power? Checkout the Greenstone VHC-1 Greenstone VHC-1 – NEW Running MORE Power? Checkout the Greenstone VC-2 Greenstone VC-2 – NEW All Single Pole Double Throw Vacuum Relays (SPDT) SPDT Vacuum Relays All Vacuum Relays (SPST, SPDT, DPDT) All Vacuum Relays About Max-Gain Systems, Inc. Max-Gain Systems, Inc. carries a full line of in-series, between series, right angle, T-shaped, quick connect, handie-talkie (BLACK), pigtails (coaxial jumpers), etc… RF adapters. Our RF adapter lines are constantly expanding. We keep our RF connector and adapter lines in stock. We ship both retail and wholesale quantities. To become a dealer / wholesale user, contact us with your potential usage. Max-Gain Systems, Inc. is the number one supplier of fiberglass round hollow tube, square tube and round solid rod to the antenna manufacturing industry. We produce millions of feet a year for hundreds of different industries including but not limited to:  marine / boating, aeronautical, agriculture, construction, emergency services, etc….  We have the unique ability to sell one piece or even a semi-truck full. Feel free to prototype using our fiberglass tube and rod then contact us for a quote on a production run. At production run quantities we can cut to your desired lengths at no additional charge, and we can also perform several different fabrications (example: drilling holes in precise locations along a tube) to ensure your delivered material is ready for assembly. We have several accessory items designed for our fiberglass including but not limited to: couplers, telescoping clamps, ferrules, etc… Did you know? We will buy your used and overstock vacuum capacitors and vacuum relays? Max-Gain Systems, Inc. is the one source to liquidate your excess inventory of vacuum capacitors and vacuum relays. REDUCE warehousing costs, REDUCE aging inventory & OPTIMIZE warehouse space by selling us your unwanted inventory. New and old stock, used and even removed from working equipment, one unit to one thousand plus, you can make money as well as go green. In addition, most of the surplus items we buy are able to go right back into facilities and into the hands of individuals that need a low cost replacement to keep their plants and broadcast stations up and running. Sell your New and Used Overstock vacuum capacitors and vacuum relays by emailing us. Please include how many, the manufacturer’s part number, and their condition, along with your full contact information. We will reply within one business day.
